Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Sierra, Sierra
  • Model Number: Fastrack FXT009, Fastrack FXT009
  • Frenquence: EGSM900/1800Mhz or EGSM900/1900MHz
  • Interface: USB RS232
  • AT Command: support
  • SMA Antenna: support
  • functions: sms/mms/voice/data transmission/remote control
  • Support: tcp/ip open at/stk
  • Certification: CE,FCC,RoHS

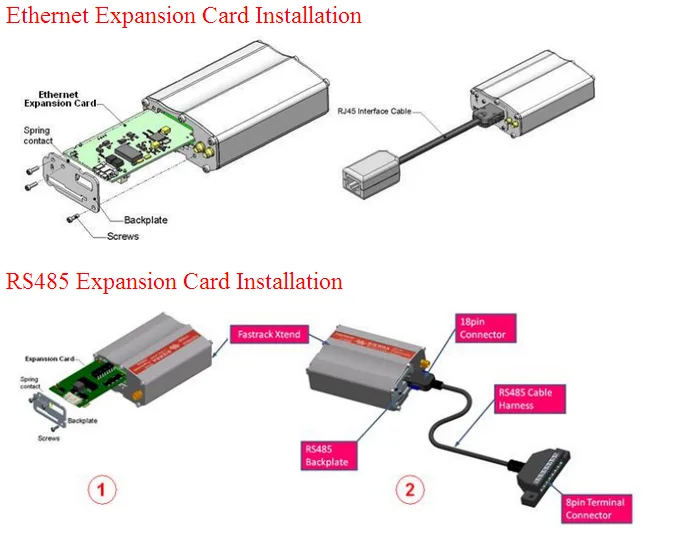

  • RJ45&RS485 Expansion card installation: SUPPORT

Packaging & Delivery

Packaging Details Original GSM m2m gsm sms send device modem RS232 RS485 USB wavecom modem FXT009
neutral packing,each per box( RS232 RS485 USB wavecom modem FXT009)
Delivery Time 1-3 days

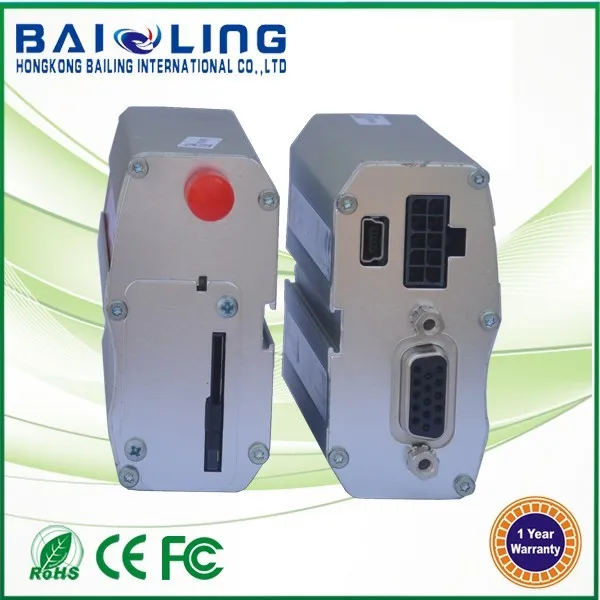

Original GSM  m2m gsm sms send device modem RS232 RS485 USB wavecom modem FXT009
The Fastrack Xtend series is a range of self-contained programmable gateways supporting EGSM/GPRS/EGDE 850/900/1800/1900 quad band, WCDMA 850/1900/2100 and CDMA2000 1XRTT (IS-2000) that is especially designed for M2M systems. For the 3G versions of the Fastrack Xtend, UMTS and HSxPA connectivity are also available for users.
    The Fastrack Xtend also offers an Expansion Card interface accessible for customer use. Expanding application features is easy by simply plugging in an Expansion Card.
     Fully certified, the Fastrack Xtend offers quad band 850/900/1800/1900 MHz GPRS and EGPRS Class 10 (12*) capabilities, Tri Band WCDMA/FDD (850/1900/2100) (Band I, II, V) UMTS / HSxPA; and it also supports the Sierra Wireless Software Suite. The Sierra Wireless Software Suite is the world’s most comprehensive cellular development environment, which allows embedded standard ANSI C applications to be natively executed directly on the Intelligent Embedded Module. For more information about Sierra Wireless Software Suite, refer to the documents listed in section 19
Reference Documents.


Main Features and services

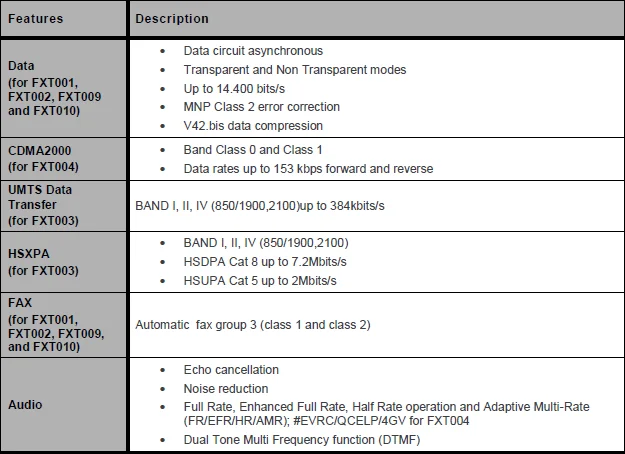

refer to the table below for the list of basic features available on the Fastrack Xtend

 Original sierra wireless airlink FXT009 fastrack modem

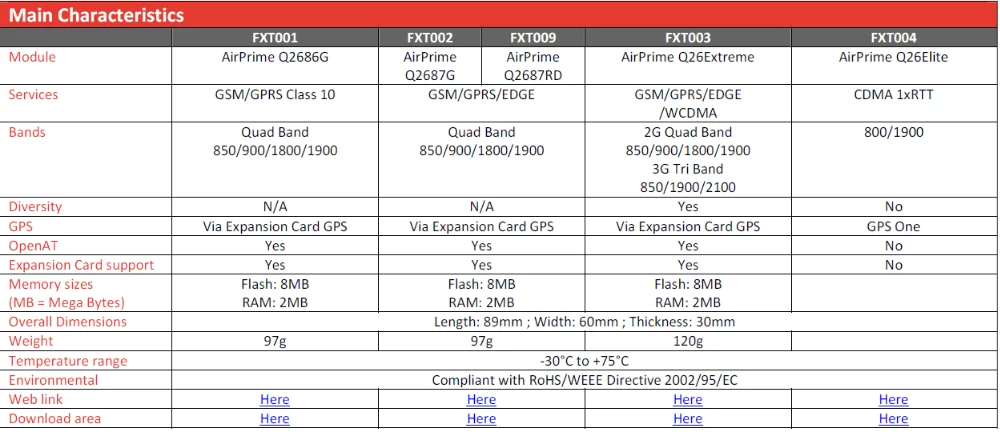

Refer to the following table for the comparison list between the
different Fastrack Xtend variants

Original sierra wireless airlink FXT009 fastrack modem

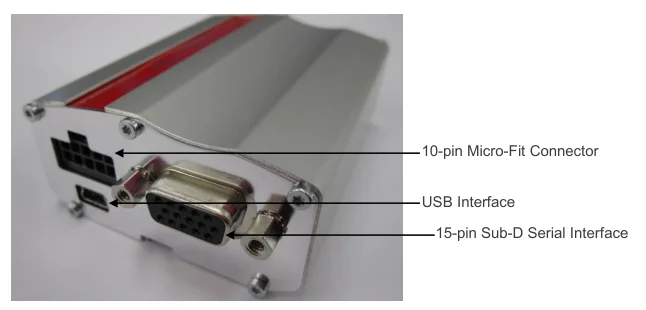

This section describes the different interfaces that connect with the Fastrack Xtend. The Fastrack
Xtend comes with the following interfaces:

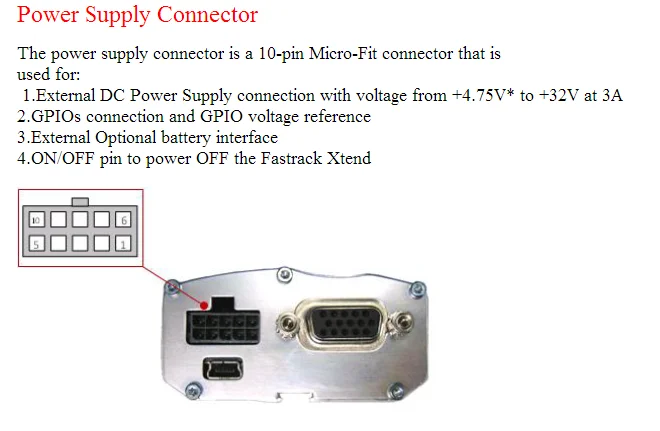

  • 10-pin Micro-Fit Connector

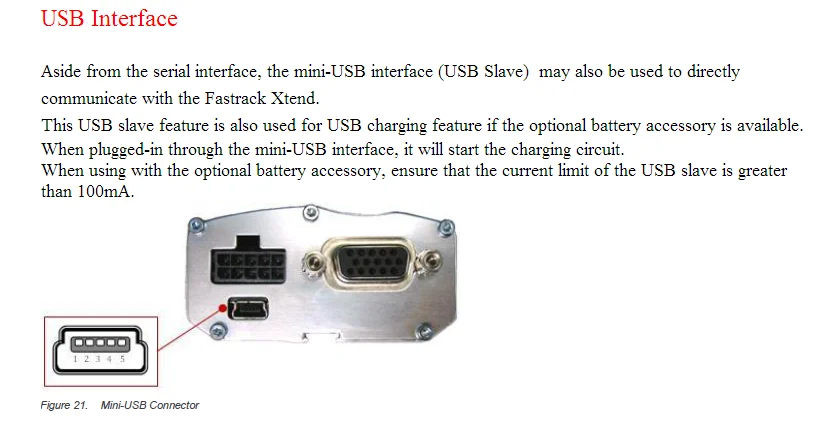

  •  USB Interface
  •  15-pin Sub-D Serial Interface
  • Main RF Interface
  • Secondary RF Interface (for FXT003 and FXT004 only)
  • SIM Interface (not available for FXT004)
  • LED Status Indicator

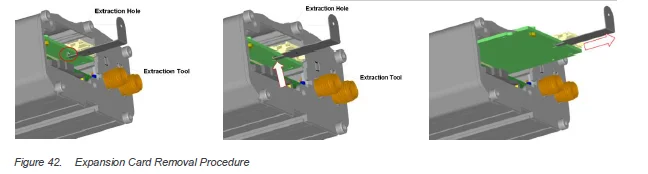

Expansion Card Removal

To remove the Expansion Card from the Fastrack Xtend, insert the extraction tool hook into the Expansion Card
extraction hole located under the PCB. Once in place, pull the extraction tool to extract the Expansion Card from
the Fastrack Xtend.


Using the Battery Accessory

Assemble the battery accessory with the Fastrack Xtend as shown in the figure below.

Why BALLING Mass SMS Broadcast System?
  • Only One Time Investment, But A Lifetime Usage. No Monthly Fee, No Yearly Fee, No Contract.
  • Easy To Install & Use. Jumpstart Your SMS Marketing/Broadcasting Instantly!
  • Mobile Enough To Be Use Anywhere, Anytime
  • Unlimited Computer Installations
  • 100% Protection of Your Database Privacy. Every Data Is In Your Computer, No Shared Server, No Internet Connection.
  • Specialization – over 4 years of focusing only on SMS technology
  • High Quality Assurance With Compliance To Europe CE & Singapore IDA Standard
  • Premium 5-in-1 Customer Services & Technical Support
  • Highest Sending Speed In The Market
  • Flexibility On System Package & Payment (Instalment Plan Available)
  • 30-Day Money Back Guarantee
  • Tons Of Happy Customers In Over 25 countries e.g. America, United Kingdom etc

 Original sierra wireless airlink FXT009 fastrack modem
